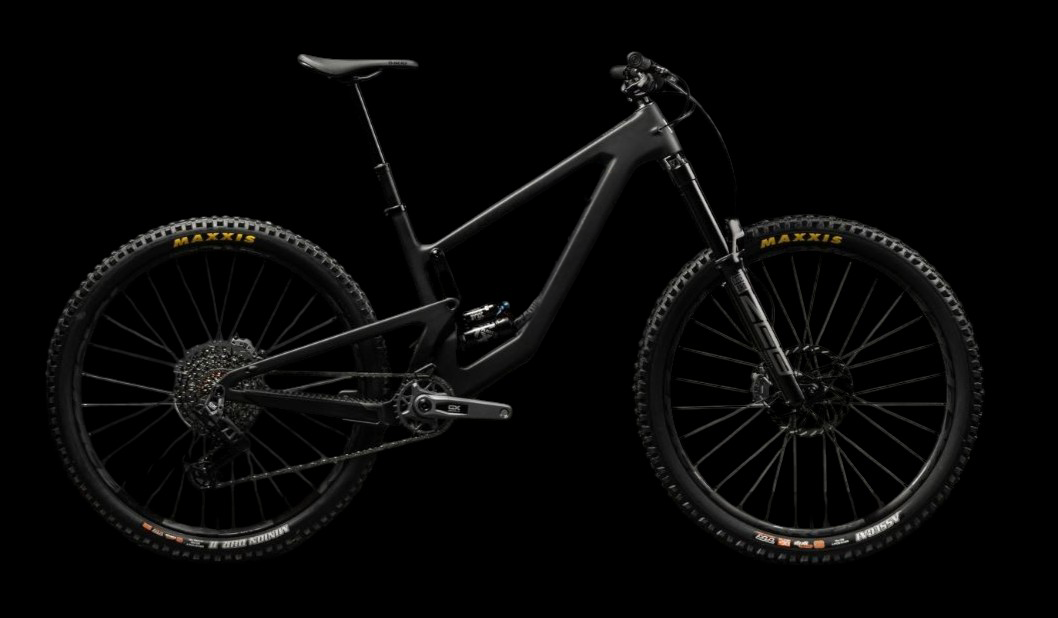

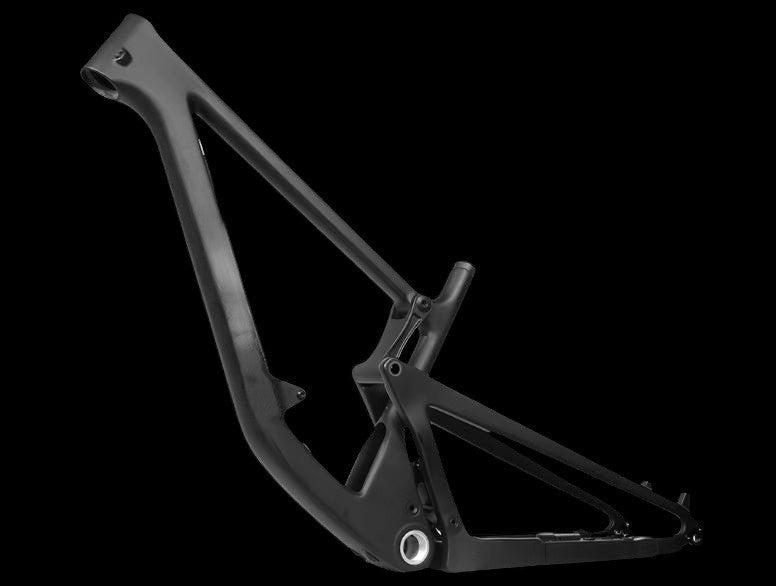

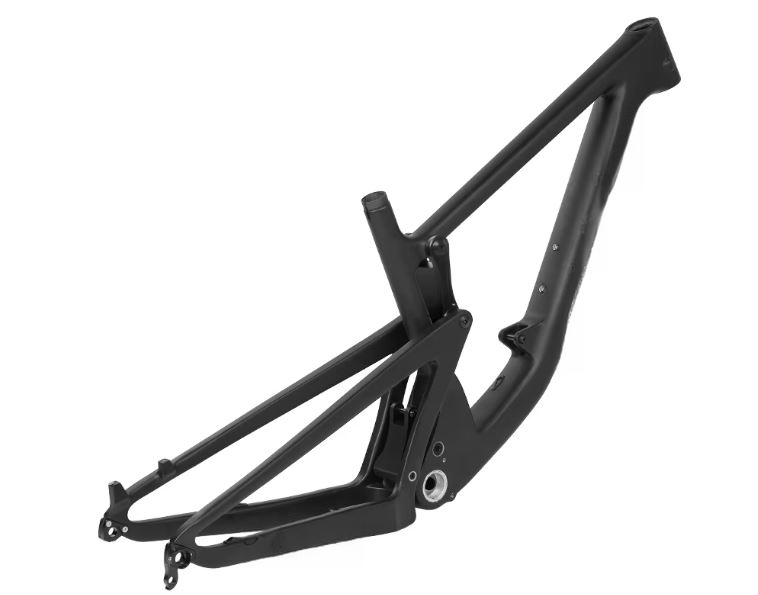

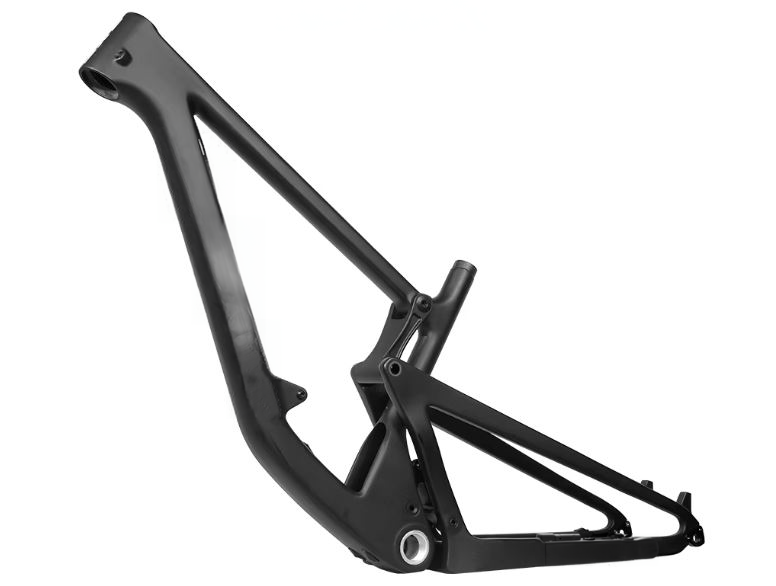

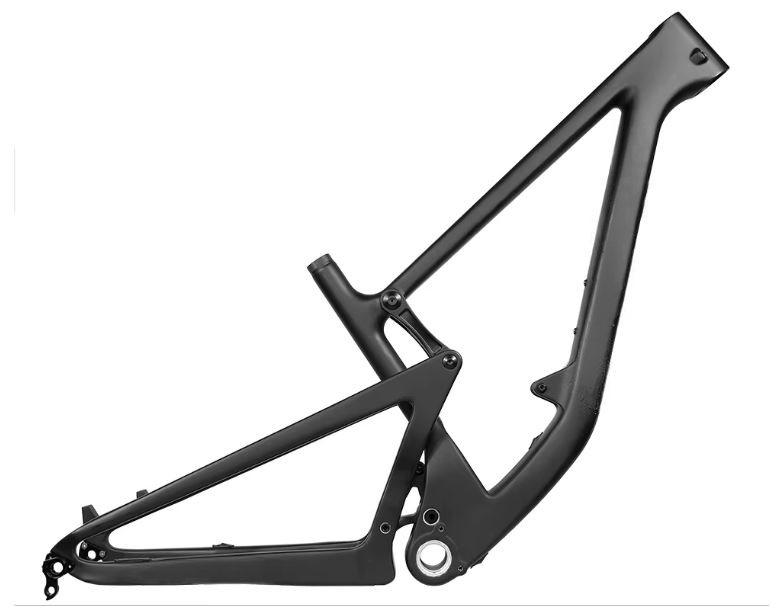

Experience the ultimate blend of speed and control with the DCB F165 Santa Cruz Megatower Style Carbon Full Suspension Frame 29er UDH. Its tough carbon fiber chassis and long-travel suspension provide the security and agility of a race bike, while its steep seat angle and size-specific geometry ensure top-notch pedaling performance. Conquer any terrain with ease on this perfect choice for big gravity rides, park laps, and enduro racing.
Product Specs:
Material: 100% High-Quality T700/T800 Carbon Fiber

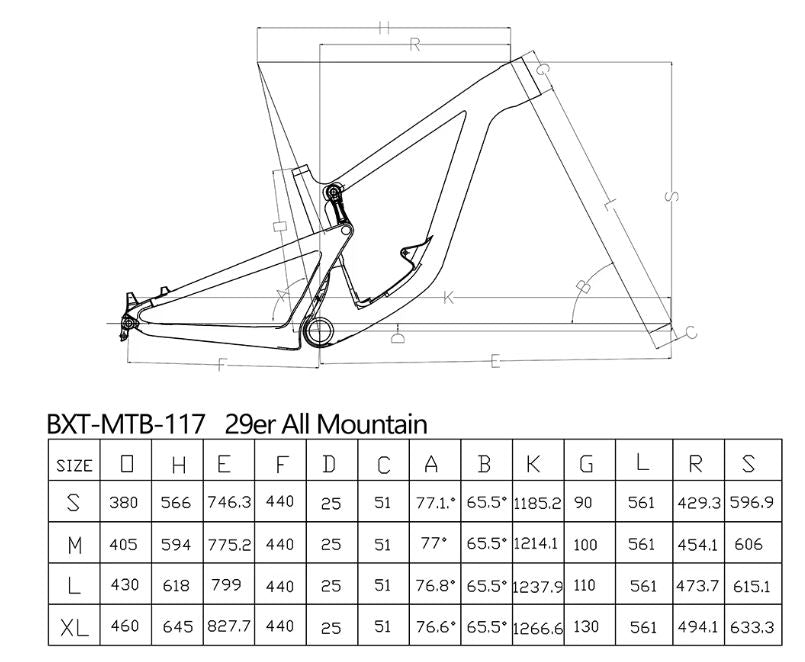

Size Availability: 15.5” (S),17.5” (M) ,19.5" (L)

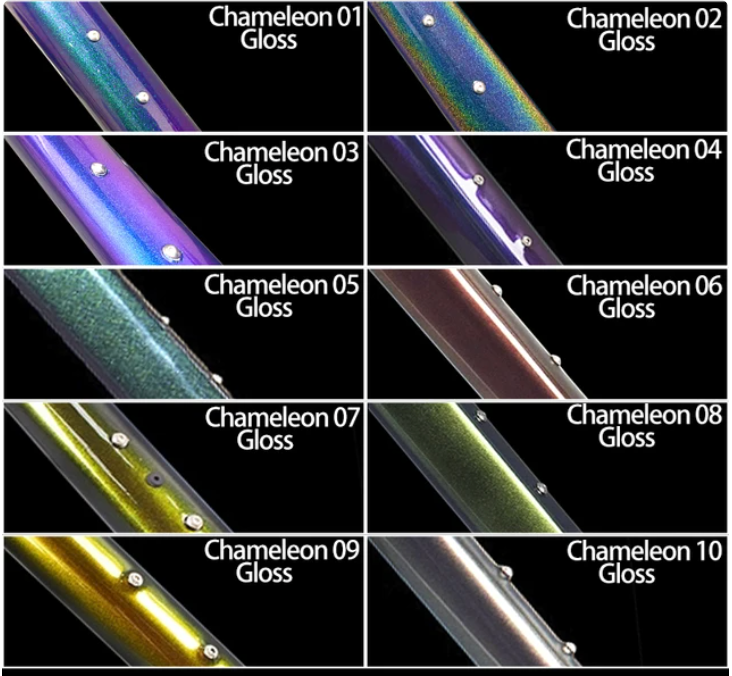

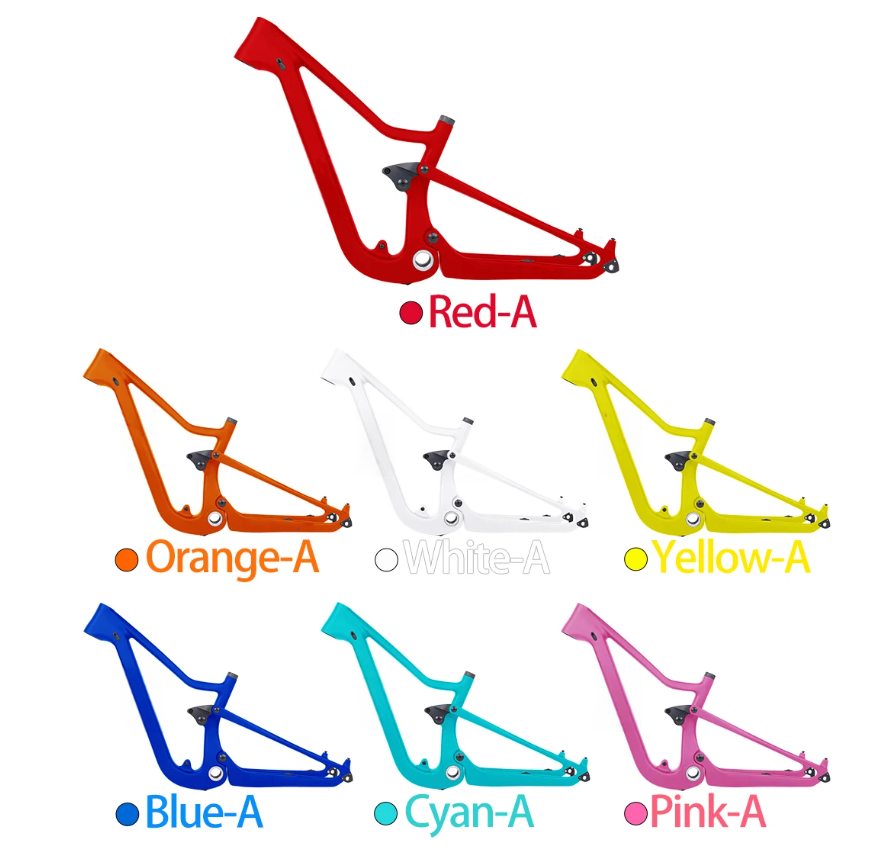

Finish: UD Black Matte or Glossy (Custom Colors available for $100 upgrade, see colors in Product Images)
Rear Shock Eye to Eye: Standard is a 210 eye-to-eye 210x55, but frame will take 210x50, 210x55, 210x57, 210x60.
Rear Shock Hardware: 22x8mm top and bottom
Rear Travel: 165mm
Front Fork Travel: 160-170mm 29er wheels (160-180mm for 27.5 wheels)
Disc Rotor size: 160mm
Weight: 2395g ±30g (M)
Bottom Bracket: BSA English Threaded
Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.
Rear Spacing: BOOST 12*148mm thru axle (Axle included)
Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)
Seat Tube: For 31.6mm diameter seat post
Rear Hanger: UDH Universal Deraillaur Hanger
Max Tire size: 29x2.5 and 27.5x2.8
Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.
Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.
