Looking for a quality set of carbon handbuilt wheels for your XC/Trail rig?
The DCB Carbon MTB Wheels XC/Trail with DT240 Hubs are a solid set of wheels equipped with the highest quality ultralight hubs.
These wheels are available with Six XC/Trail Rim Options so you can have the depth, height, profile, and weight that you want! Three of the options have upgrade costs (See wheel options below with price and weight).

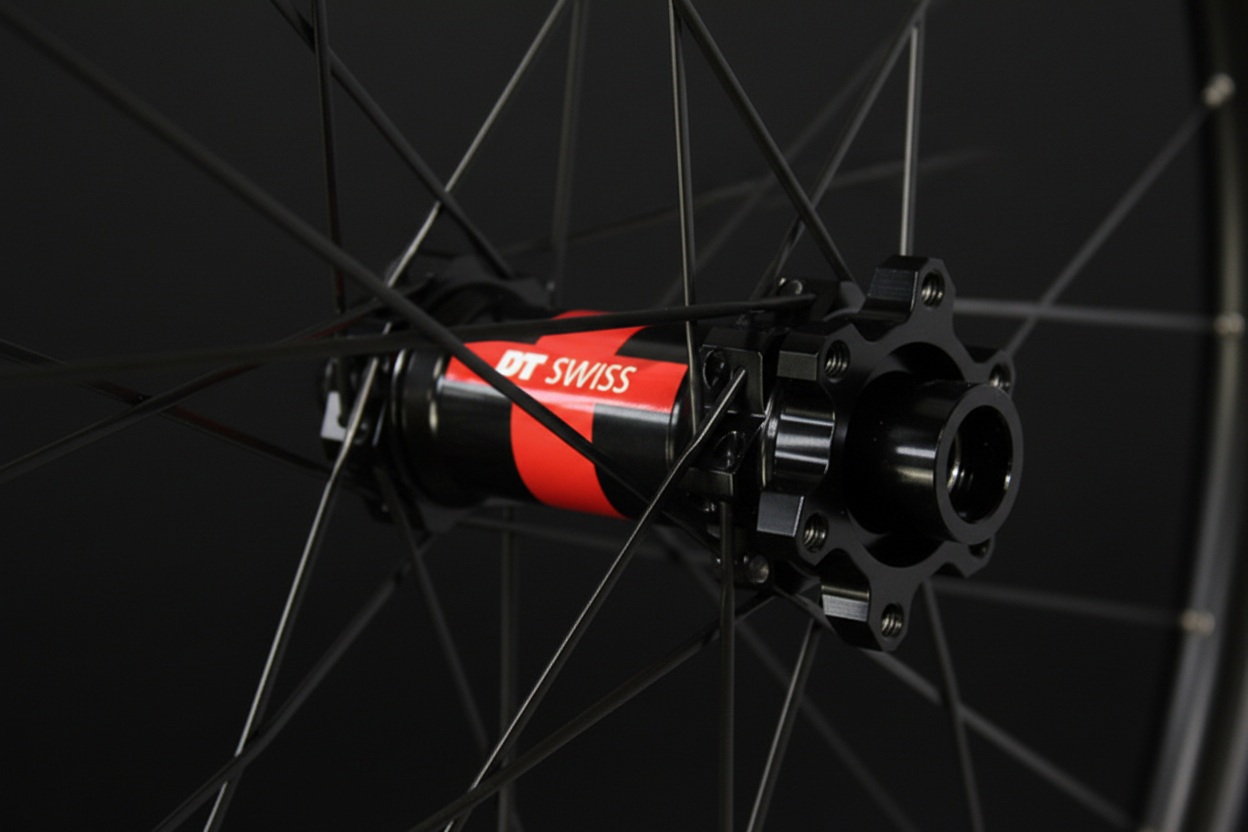

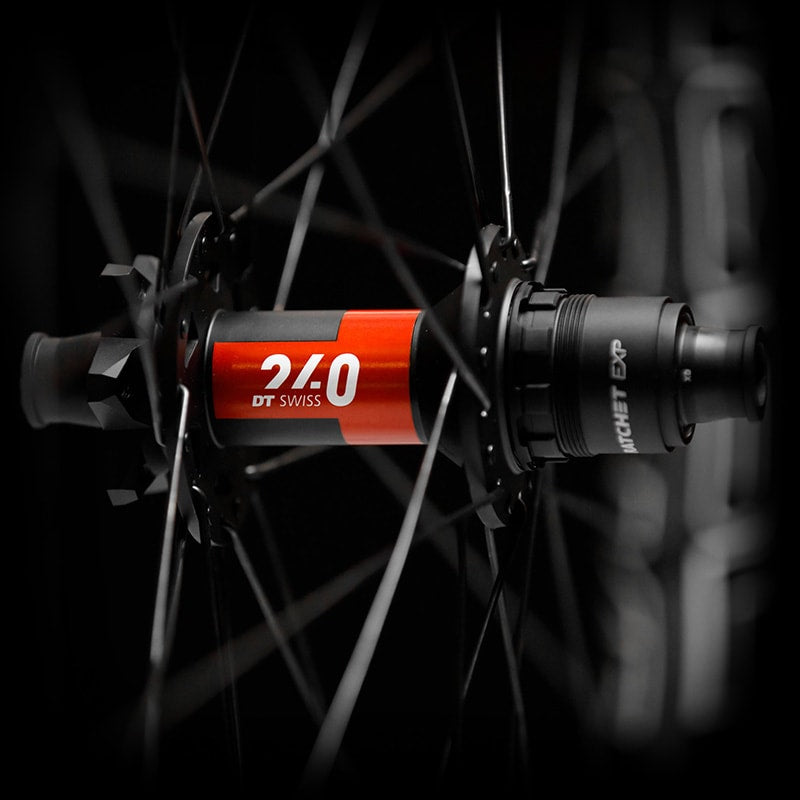

The DT240 hubs provide a strong, ultralight, low maintenance, XC/Trail hub available in all spacings. DT Swiss hubs roll extremely smooth. We have now upgraded to the NEW DT240 Rachet EXP with a stock 36t ratchet!
The DT240 hubs provide a strong, light, low maintenance, XC/Trail hub available in all spacings. DT Swiss hubs roll very smooth and are low maintenance. Rather than the pawl and ratchet system, DT hubs feature a double ratchet system, so instead of engaging three to six pawls in a toothed ratchet, DT has to toothed ratchets so that all teeth engage at once. This allows for a lower maintenance hub that has longer lasting ratchets
Price: $1115 total for FULL WHEELSET and FREE GLOBAL SHIPPING!
Upgrades:
+$60 for Upgraded Rims
+$60 1420 Ultralight bladed spokes
+$20 XD driver
Other customization options are available
Tubeless Accessories and installation available
Model Specs:
TIRE SIZE: 29er
RIMS: 100% High-Quality Full Toray T800 Carbon Fiber, Tubeless Ready, Hookless, 28h.
RIM WIDTH: 30mm (25mm internal), 35mm (30mm internal), 37mm (31mm internal)
HUBS: DT240 Ratchet EXP Hubs, with 36t ratchet, 6-bolt J-bend or Straight Pull, centerlock availiable.
HUB SPACING: 9x100/9x135 QR, 15x100/12x142 TA, OR 15x110/12x148 BOOST, Mixed Spacing Available.
SPOKES: Pillar P14 straight gauge spoke, or double butted bladed Pillar X-TRA 1420 Spokes.
CASSETTE DRIVER: Shimano HG (Shimano 10-11, Sram 10), or SRAM XD (Sram 11-12).
NIPPLES: Alu black (standard), silver, red, gold, blue, green
DCB DECALS: No decals (standard), or add stealth, white, silver/gray, red, yellow, orange, blue, green, purple decals (if colored decals are desired, please indicate the color in cart/checkout notes)
PRICE AND WEIGHTS:
Based on Rim Width, Depth, Profile, Rim Weight, Hub, Spokes.
30mm (24id), 25mm deep, Symmetrical, 390g, DT240, P14 - 1540g -
30mm (24id), 25mm deep, Symmetrical, 390g, DT240, 1420 - 1440g -
35mm (29id), 25mm deep, Sym or Assym, 430g, DT240, P14 - 1630g -
35mm (29id), 25mm deep, Sym or Assym, 430g, DT240, 1420 - 1530g -
30mm (25id), 24mm deep, Symetrical, 320g, DT240, P14 - 1350g -
30mm (25id), 24mm deep, Symetrical, 320g, DT240, 1420 - 1250g -
37mm (31id), 24mm deep, Symetrical, 390g, DT240, P14 - 1540g -
37mm (31id), 24mm deep, Symetrical, 390g, DT240, 1420 - 1440g -
30mm (25id), 22mm deep, Assymetry, 360g, DT240, P14 - 1490g -
30mm (25id), 22mm deep, Assymetry, 360g, DT240, 1420 - 1390g -
Warranty: Two years full warranty and three-year wholesale crash replacement.
Shipping: Wheels are handbuilt in 7-12 days, then ship to arrive in 7-15 days, for the most updated information about shipping see our Shipping and Returns page at the bottom of our site under Support.
