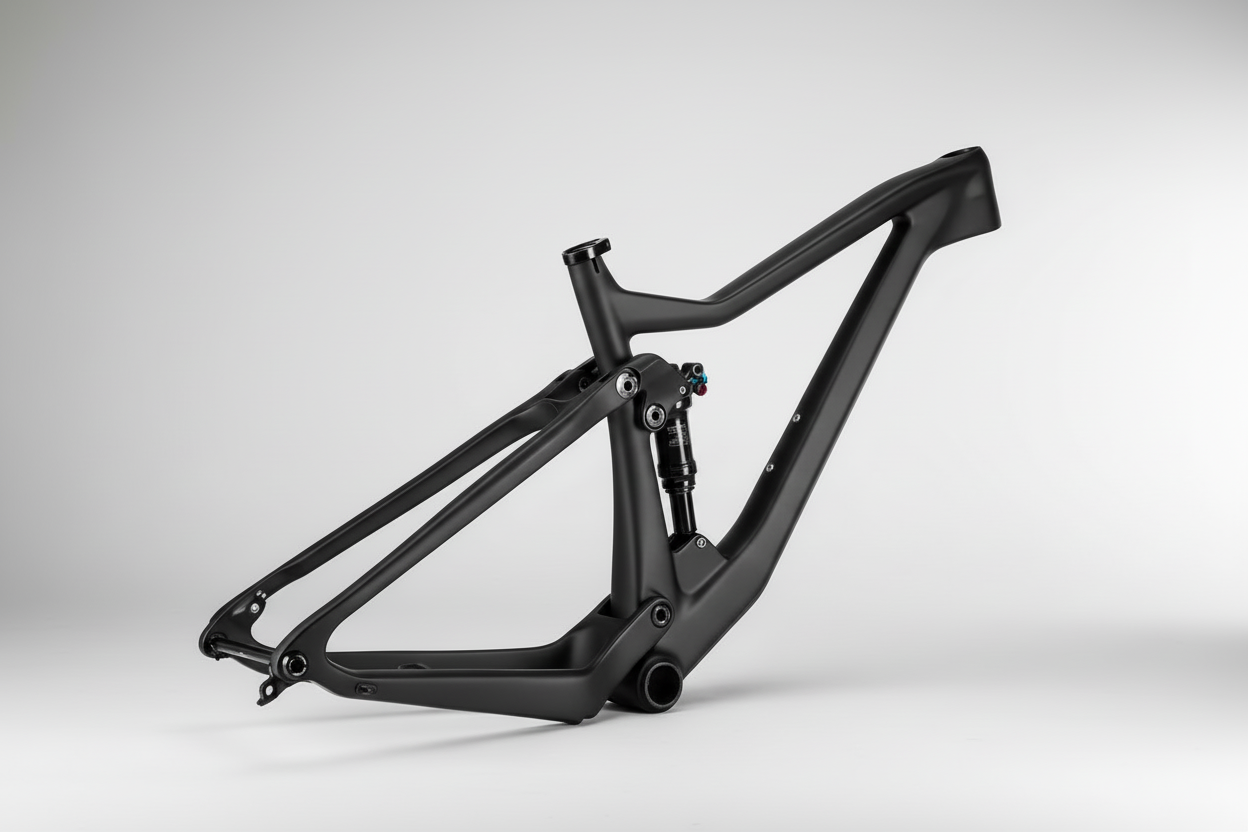

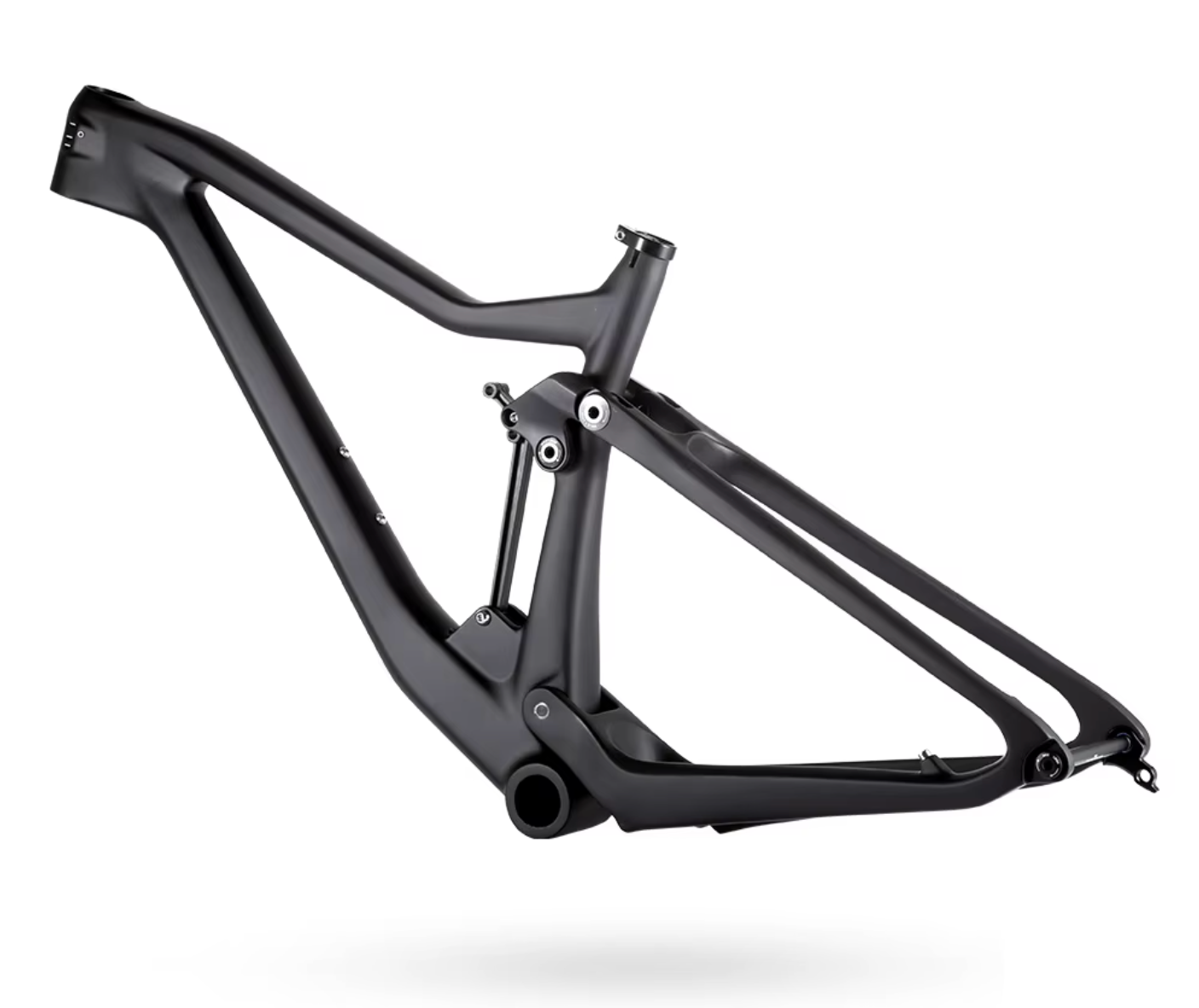

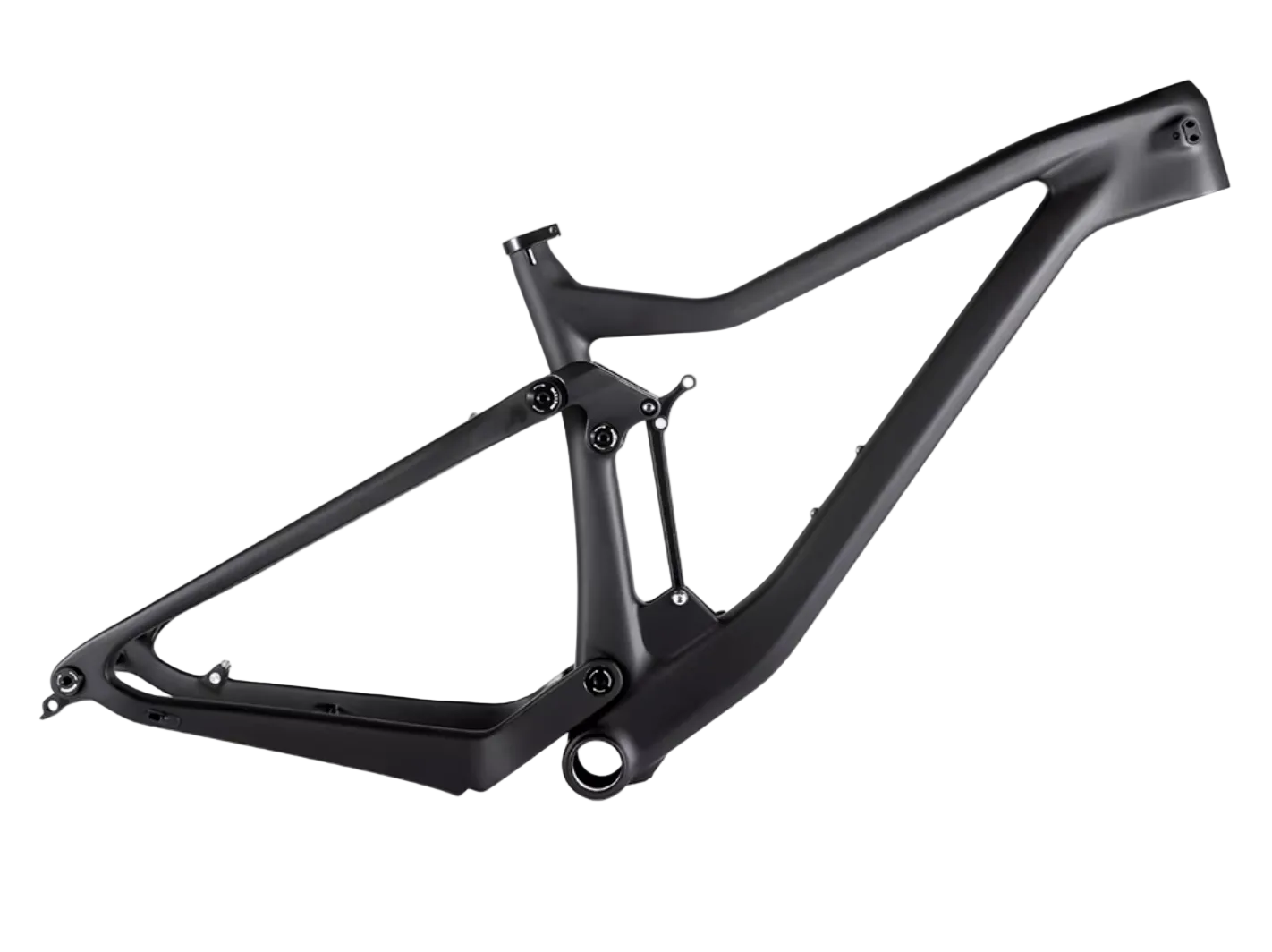

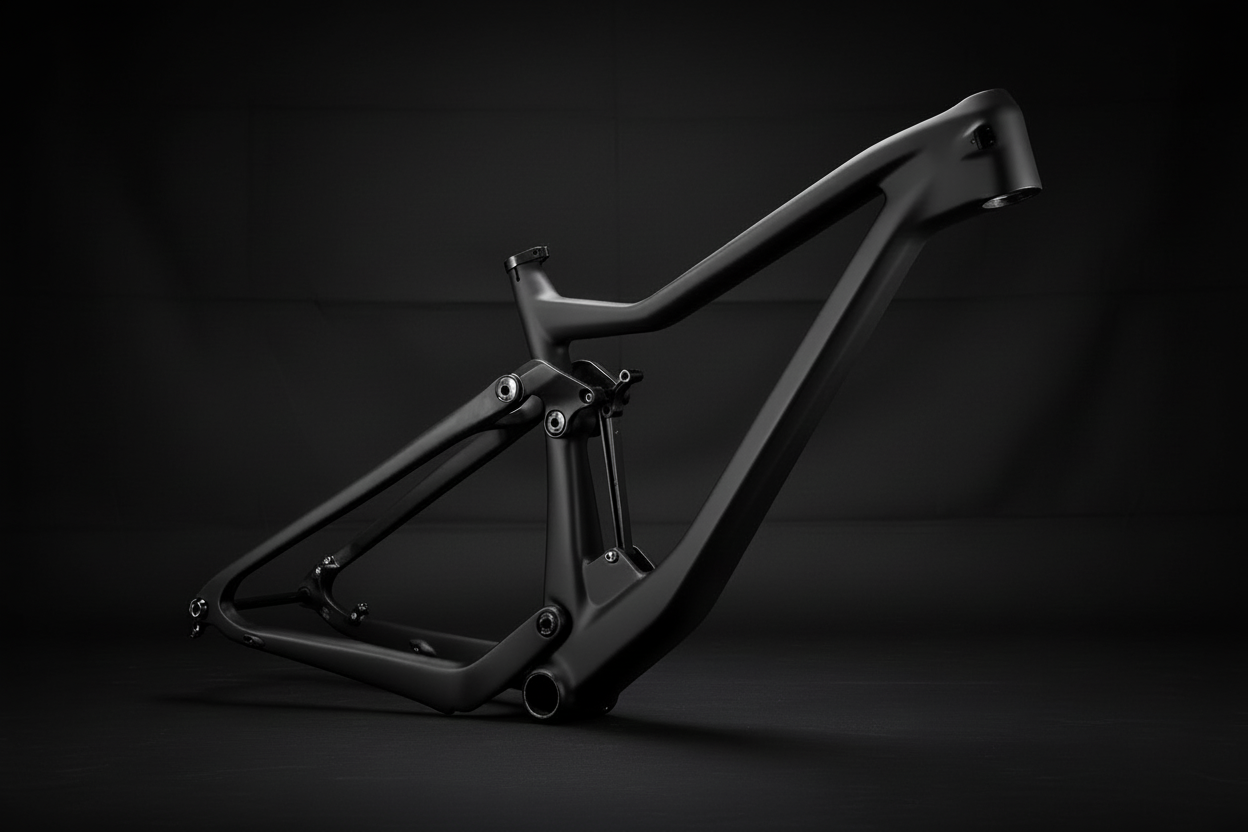

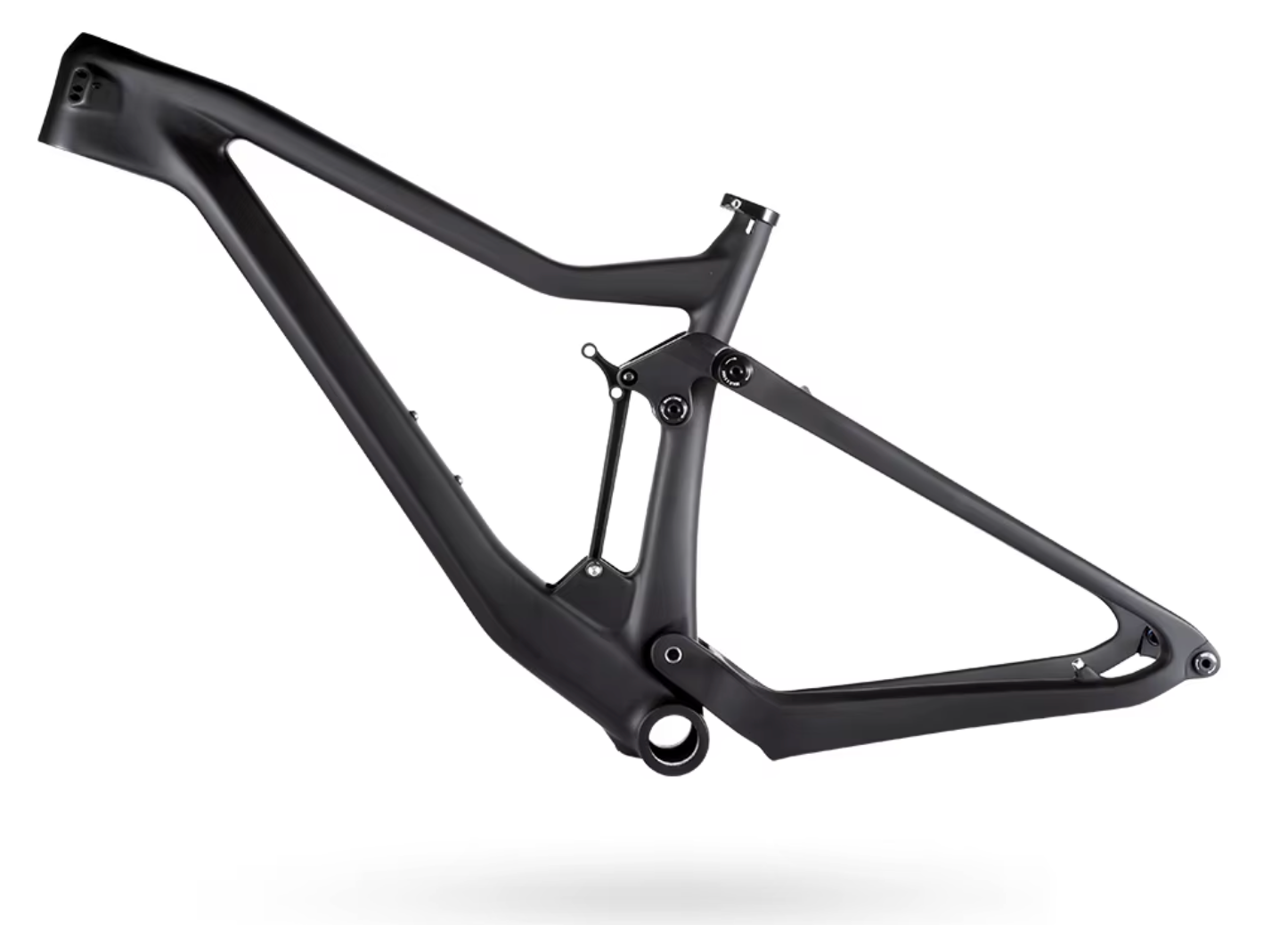

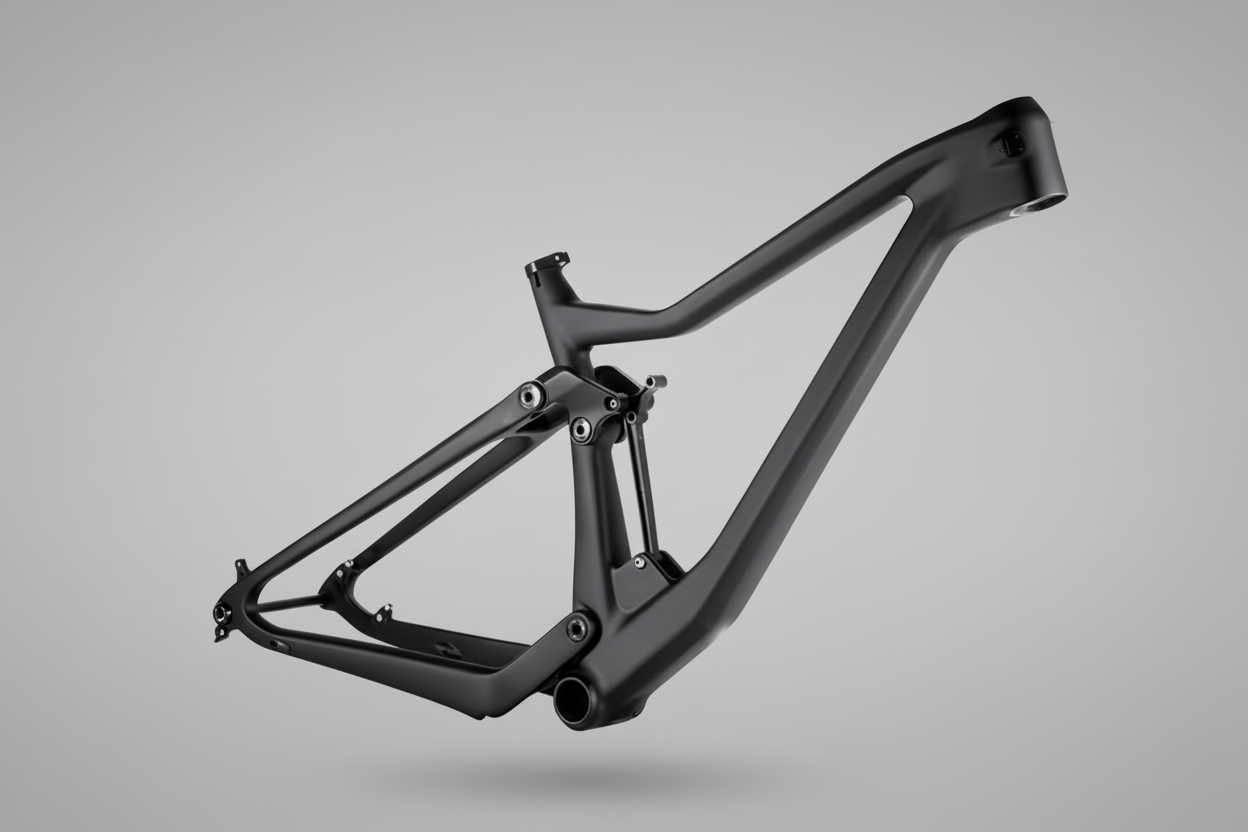

DCB F100 XC/Trail Full Carbon Full Suspension Frame UDH 29er or 27.5+ 100mm 120mm

11 reviews

Regular price: $955.00
Sale price: $955.00

Color

Ready to build up your own light and fast trail XC/Trail full suspension mountain bike? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This F100 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 100mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance PF92 bottom bracket, this frame is for those that want a hardtail that takes the rougher lines.

This frame is comparable to the Scott Spark with similar travel, weight, trunnion mounting, and rear travel system, and the frame can take 29er or 27.5+ wheels. The frame can take up 100mm-130mm fork in the front with 29er wheels and 120-140mm fork with 27.5+ wheels.

Now with UDH derailleur hanger!

Price includes frame, rear thru axle, headset, dropout hardware, and FREE GLOBAL shipping

Product Specs:

For components for your frame use our Product Search Tool to compare components from multiple sites HERE

Material: 100% High-Quality T700/T800 Carbon Fiber

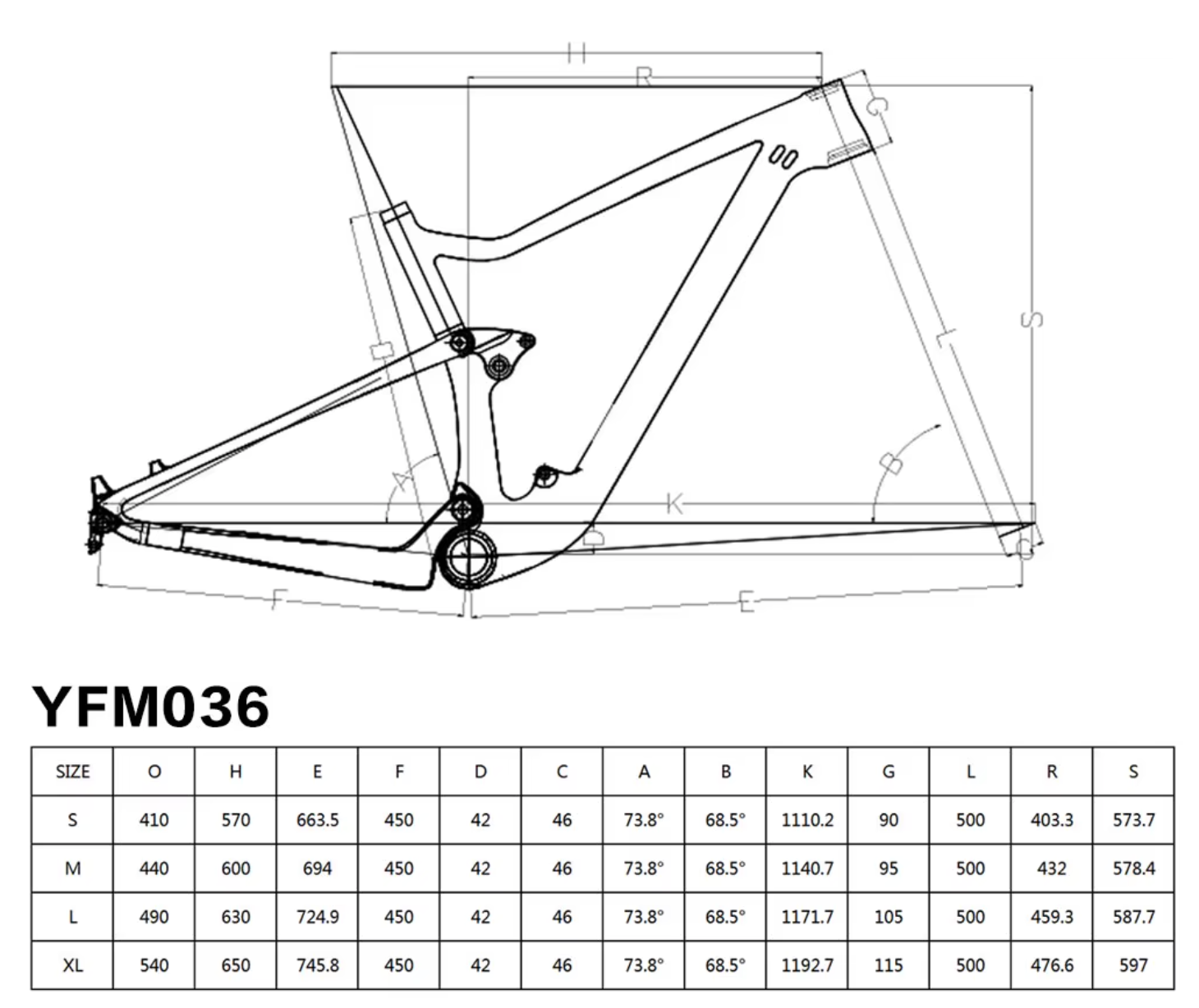

Size Availability: 15.5”,17.5” ,19”, 21"

Finish: UD Matt or Custom Color (Select Custom Color and Put Pantone Code in Checkout Notes)

Rear Shock Eye to Eye: 165x38 OR 165x40 or 165x45 Trunnion Mount

Rear Shock Hardware Top: Top: 22mmx8mm (Order HERE)

Rear Shock Hardware Bottom: Standard - 50mmx8mm (Order HERE) Trunnion - Bottom Trunnion Bolts included with the frame!

Rear Travel: 100mm - 165x38 (165x40 - 110m, 165x45 - 120mm)

Front Fork Travel: 100-130mm 29er wheels (120-140mmmm for 27.5 plus wheels)

Disc Rotor size:160mm rear.

Weight: 1920g /+-45g

Bottom Bracket: BB92

Cable Type: Internal Routing for the brake line, rear derailleur, dropper post.

Rear Spacing: BOOST 12*148mm thru axle (Axle included)

Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)

Seat Tube: For 31.6mm diameter seat post

Max Tire size: 29x2.5 and 27.5x2.8

Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.

Warranty: This frame is eligible for two years full warranty and three years wholesale crash replacement.

Customer reviews

Based on 11 reviews

WRITE A REVIEW

By date

By rating

By content

By photo

Brian Ford

Jun 26, 2024

Full suspension single speed dream! 21 lbs all said and done; Definitely light enough to race. This thing is fast, really fast!! I went 120/110 on my suspension

Andrea Johnson

Sep 3, 2023

Bike turned out fantastic and I love it. My local bike shop helped me put it together. Fox Float DPS was added and most of my existing components, including SRAM Eagle AXS. Super light, sturdy, highly recommend.

Christian Burrell

Mar 21, 2023

Purchased an F100 frame a year ago and I couldn't be happier! Fame is beautiful, well made, and handles everything with smooth style. I've done long endurance rides, big techy stuff, and even lift served DH on this steed. I paired it with DCB carbon wheels as well and I am 100% satisfied.

Jason Neese

Aug 25, 2022

Great quality and finish.

James C.

Jul 18, 2022

I wanted to do a dream build with this frame and this is it. I wished for XC race bike weight with a down country stance. 9 point 8 Slack-R 1.5 degree kit & Fall Line R 125mm forward offset dropper. E Thirteen XCX crankset & Shimano XTR group for everything else. DCB 1250g wheelset w/ DT Swiss 240 hubs, Rockshox SID RL3 / Rockshox Nude Deluxe RLC3 / Scott TwinLoc lever. Suspension is identical to a Scott Spark RC! Specialized S-Works tires. DCB carbon stem & riser bar. 22.8 lbs with pedals. Light, fast & fun! Ty was extremely helpful with all questions regarding this build. Dream fulfilled!!!

EDGAR MARCELO BAUS BALDA PB2645

Sep 30, 2021

Great Frame for XC. Very Light and compatible with every component, im using SRAM Eagle X0 groupset, Shimano XT brake set, Manitou Expert R7 120 mm Fork and Manitou Mara rear Shock 100mm, RaceFace Aeffect Drop Post 100mm. Also using DCB I780 Hixon SL iC Handlebar from DIY Carbon !!! Great Option for a vey affordable price

John R Gassie

Sep 14, 2021

I've had a few months now to try my F100 on plenty of different trails around the state and I'm happy to say I am 100% satisfied with my purchase. I wanted to build something light with 120 mm of travel and it came in at 24.75 ready to ride. It has Fox 34 Factory step cast fork with a Rockshox Deluxe Ulltimate RTC in the rear. I also bought the carbon seat post and stem from DIY and they are also quality products. I ordered mine on March 30, 2021 (height of covid) and it took just under 2 months to arrive at my door. 7-10 days of that was US Custom backlog in Cincinnati. I belive there was also a Chinese holiday at some point in the process. It was well worth the wait given the value in this frame. I will buy from DIY again.

Barry Martin

Aug 12, 2021

Very happy with it, handles great climbs and descends well, quick steering and agile- just the ride I wanted!

Eddie Willet

Feb 9, 2021

Bike came out to 23ibs, a little less with race tires. The bike is incredible; you rarely get everything you want out of a bike and this one certainly delivers exactly what I was looking for in a race bikes. No surprises very balanced fast climber felt like I been riding that bike for years.

Guillaume Boyer

Sep 29, 2020

Build went smoothly, cable routing wasn't to hard as long as you have a second pair of hands. Overall, the bike is really light for the price, best bang for the buck, especially if combined with carbon wheels. It does perform well downhill as long as you don't expect to go to a bike park with it, and it does go up like a charm.

Brad Watling

Aug 27, 2020

Ordered a Scott Spark style FS frame from DCB. Ty couldn't have been more accommodating with all my questions as I was building it up myself. I also included a seat post/stem/handlebars in my order. I can say without a doubt the quality is excellent for all the parts, especially the frame. Really great attention to detail. I had a great time building it up and now have a light weight, high quality MTB that rides like a dream. Can't go wrong here, Ty is the man! Thanks again for all the help.
