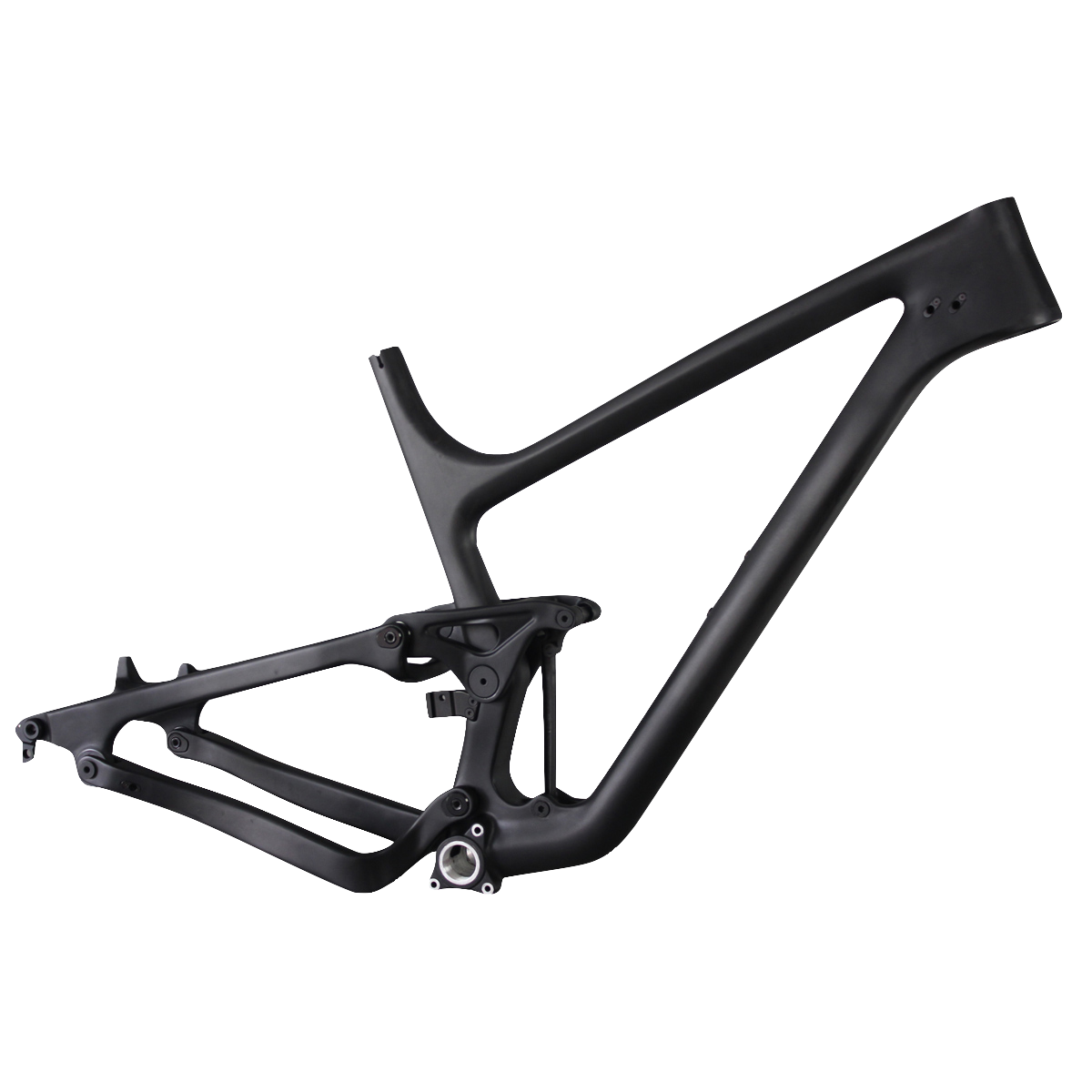

DCB F130 Trek Fuel Style Carbon Full Suspension Frame 29er or 27.5+

12 reviews

Regular price: $955.00
Sale price: $795.00

Color

Ready to build up your own light and durable carbon Trail/AM MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This F130 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 130mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable BSA English Threaded bottom bracket, this frame is for those looking to be efficient, yet bomb decents with some big jumps thrown in.

This frame is designed in the style of Trek Fuel, and can take 29er or 27.5+ wheels. The frame can take up 130-140mm fork in the front with 29er wheels and 140-150mm fork with 27.5+ wheels.

Price is total shipped which includes frame, rear thru axle, headset, and FREE GLOBAL shipping

Product Specs:

For our full build kit list with components for this bike see here - diycarbonbikes.com/pages/f130trekfuelbuildkit

Material: 100% High-Quality T700/T800 Carbon Fiber

Size Availability: 15.5” (S),17.5” (M) ,19.5" (L)

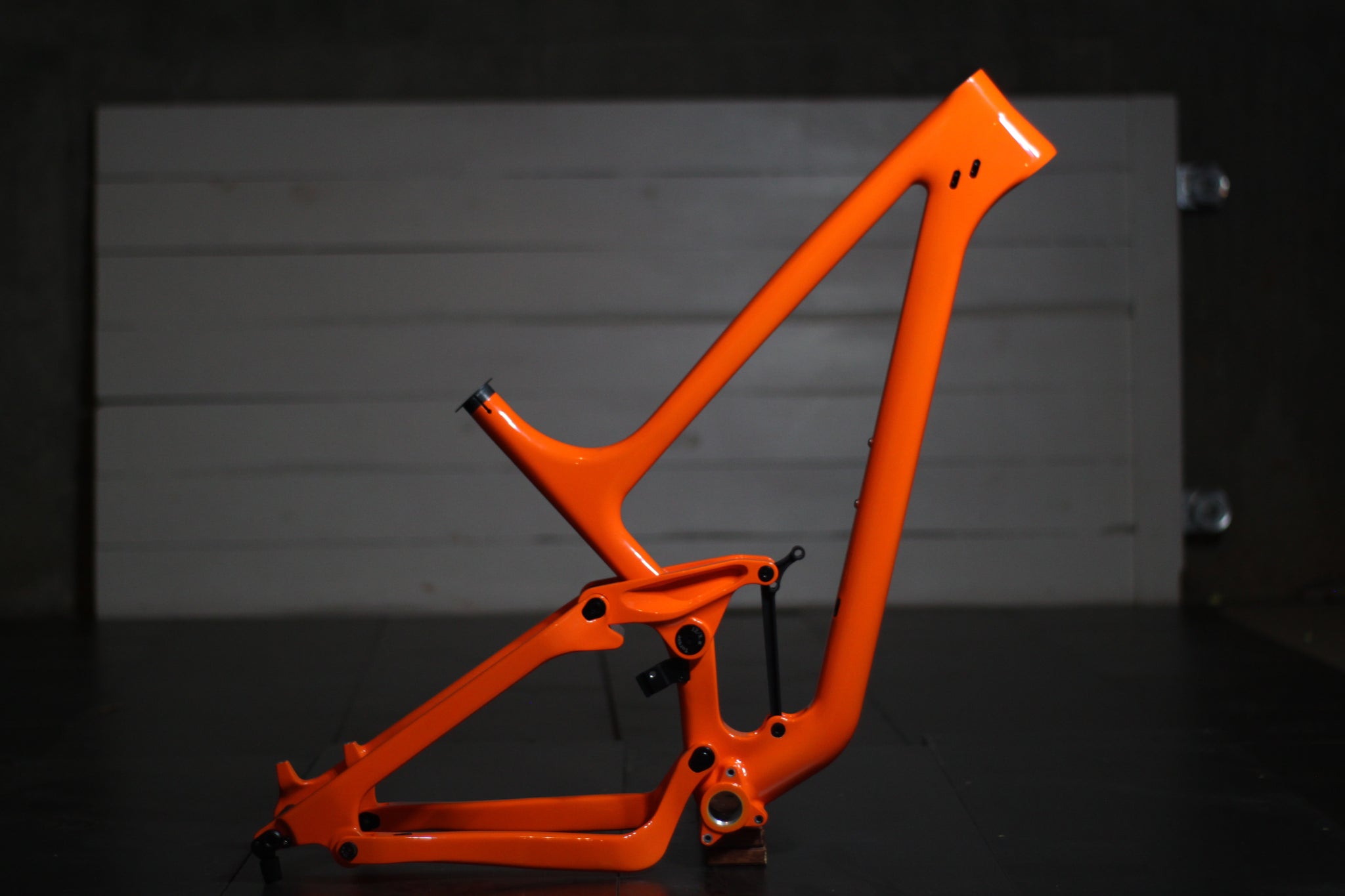

Finish: UD matte (Custom Colors available for $75 upgrade for Standard, $150 upgrade for Special Paint -- See options in product images)

Rear Shock Eye to Eye: 200*51mm or 200*57mm - All COMPATIBLE options HERE

Rear Shock Hardware: 22mmx8mm - Order HERE for RockShox and HERE for Fox

Rear Travel: 130mm

Front Fork Travel: 130-140mm for 29er wheels (140-150mm for 27.5 plus wheels)

Disc Rotor size:160mm

Weight: 2350g ±30g (M)

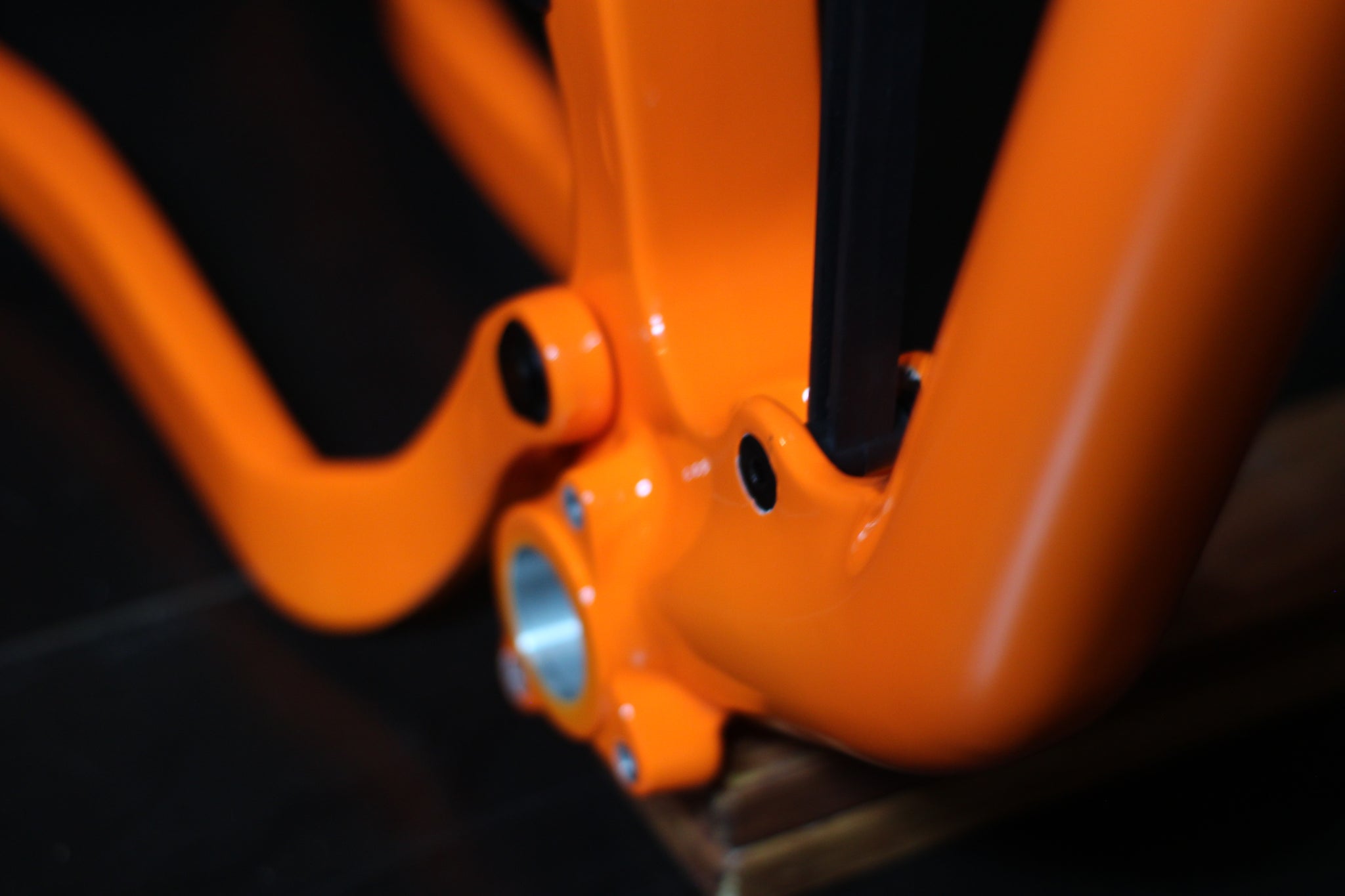

Bottom Bracket: BSA English Threaded

Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.

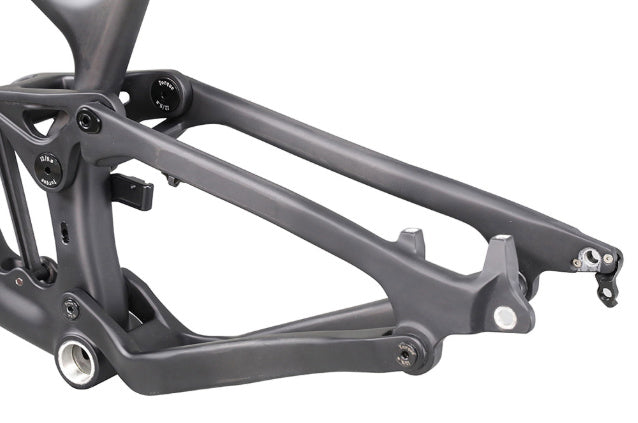

Rear Spacing: BOOST 12*148mm thru axle (Axle included)

Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)

Seat Tube: For 31.6mm diameter seat post

Max Tire size: 29x2.5 and 27.5x2.8

Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.

Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.

Customer reviews

Based on 12 reviews

WRITE A REVIEW

By date

By rating

By content

By photo

Robert Wood

Jun 22, 2024

Nice quality frame. Enjoyed the build…wish I would have had DIY do the paint job as mine didn’t turn out that good

Victor Sanabria

Aug 8, 2022

I took it on a 11-mile ride with 1700ft of climbing with lots of tech sections, downhills, rock rolls, drops, lifts etc... While trying to push the limits of this bike, it saved me on at least 4 potential crashes being as light and nimble as it is. It rides amazing. Corners well on fast downhill turns and switchbacks. Ty was extremely helpful and responsive in the process and glad he was because I had a lot of questions. Specs - Rockshox Pike Ultimate - Monarch RT3 - SHIMANO SLX BR-M7120 BL-M7100 Bike 4-Piston - SRAM NX Eagle Groupset.

Cory Spradlin

Jul 4, 2022

This is my second F130 build and it's been another great experience. This is the perfect frame for everything from xc to trail. Definitely recommend adding some type of frame protection, especially on the downtown. Highly recommend this frame.

Robert

Feb 3, 2022

Ty supplies has a great line of frames and wheels. i put together the f130 frame withe a wheel set from DCB. I had a ton of fun working on it in my free time and would do it again. It made for a great father son project. And Im left with an awesome ride. - r_maston@yahoo.com

R.J. Sigler

Oct 6, 2021

I've been mountain biking for over 30 years and have had just about any mtb you can think of. This is the best mtb I've owned by far. Excellent handling and exceptionally smooth ride. My first build and it was easy. F130 frame, 40mm DIY carbon wheels, Race Face crank (use 30T sprocket-32T scraped the chain stay) and handle bars, Microshift AdventX drive train, Himalo 140mm boost fork, DNM rear shock, Goodyear Escape 2.6 tires with tannus inserts, mt-200 160/180 brakes. Total cost $2,700.18 (would have been $90 less, but elected DHL shipping for the frame). Thanks DIY!

Ryan Marshall

Feb 24, 2021

First ride on the new frame build today. So light and stiff! Perfect quality. Just as advertised. Very thorough business. Communicates well. I highly recommend this company. This is the third thing I bought from them. I bought stem and handlebars as well. All excellent purchases.

Jan 1, 2021

This is a great frame. All components assembled onto it without issue. Performance feels good with a rockshox fork and rear suspension.

Dec 1, 2020

Absolutely fantastic bike. Frame feels very solid and hasn't given me any issues. Geometry feels great, it's snappy, very capable. Built as a 160/140 27.5+ Ty is extremely helpful. Experience with the company is 10/10 and will purchase from again.

Oscar

Sep 26, 2020

Yesterday was the first time I enjoyed a track with my F130 at full speed. It felt light and stiff, which gave great acceleration. And in the tight corners it was unbelievably stable, as if there was a train track beneath my bike. With my old bike (carbon/hardtail) I always had to correct halfway through the corner, but not with this bike. I loved it. Thanks to Ty for his great support in building this bike. Config: SRAM X1 drivetrain, Rockshox -Pike Select Debonair 140mm, -Monarch RT3, -Reverb dropper post and Maxxis tires. - oscar.mulders@gmail.com

Cory Spradlin

Jul 5, 2020

This frame has performed extremely well. As a 29er I paired it with a 140mm fork. I really like the geometry compared to many bikes I tested and rode. It's a great do it all mountain bike that has handled some rough terrain, but also loves to go fast without a ton of effort like some other trail bikes. Ty was very helpful throughout the buying process and was willing to answer any questions I had. Would Def buy again.

Tom Bissett

Jul 1, 2020

This product made a 16-year-old kid very happy. Took our newly-built 130 out for the first trail ride yesterday (Palmer Park in Colorado Springs, CO) and he was beyond thrilled with how the frame and bike rode and handled. He even started taking on obstacles that he previously avoided, thanks to the confidence in the bike. - abernathy.adele@erdman.com

MTB with Zane

Nov 13, 2019

The bike holds really well and I crashed and the bike survived besides a bent handle bar but that's my fault
